BIOPTIX PX5

Powerful 10” Windows Biometric Tablet
with Efficient Power Management

BIOPTIX PX5 10.1” fully-rugged tablet is a mobile biometric solution designed for law enforcement professionals, border security personnel, passport control officers, and other field operatives.

Energy efficiency balanced with performance

Seventh generation Intel^®Core™ i5-7300U vPro™ 2.6GHz processor and redesigned power management enables long battery life without sacrificing processing speed. Extended battery option allows for up to 23 hours of operation. Hot swappable batteries also support fast charging. For a more economical Core i5 CPU option, users can opt for the fifth generation Intel^®Core™ i5-5350U vPro™ 1.8GHz processor.

Multiple functions on the go

Identify and enroll in the field with high-performance FBI-certified FAP20/45 fingerprint scanners. Other sensor options include smart card reader (CAC), 3D camera, and integrated 2D barcode reader with OCR capabilities. Easy-to-customize Snap-on connector gives you even more choices.

Visibility in all conditions

With a 1000-nit rating, BIOPTIX PX5’s high-resolution, optically bonded WUXGA (1920×1200) Full HD display is sunlight readable even in the brightest light. Hyper dimming technology enables adaptation to darker ambient-light conditions. Ten-point capacitive touchscreen supports glove touch, water rejection, and palm rejection.

Only an inch thick & fully rugged

The BIOPTIX PX5 is built tough. Gorilla Glass and MIL-STD 810G & IP-65 certifications mean this durable tablet will work wherever you go and whenever you need it.

Stay connected

WiFi, Bluetooth, 4G LTE, GNSS, and other communication options enable precise positioning, broader coverage, and stable data transfer.

Enhanced security

Customized one-button push function quickly erases SSD data during emergencies by leveraging Phoenix’s SecureWipe. Janus USB ignition key authenticates users by combining BIOS cloud services and physical token. Trusted Platform Module (TPM 2.0) provides additional security.

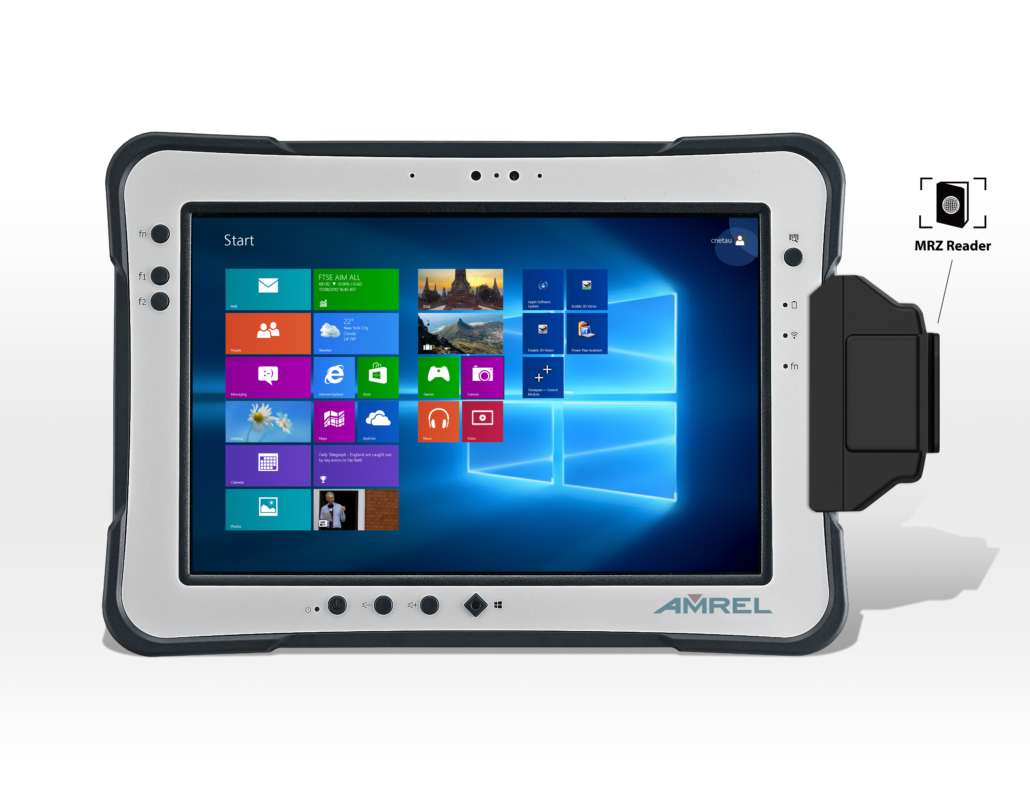

Product Images and Accessories

Specifications

Product Specifications:

Operating System	· Windows 10 IoT Enterprise · Windows 10 Professional
CPU	· PX5 KabyLake: Intel^®Core™ i5-7300U vPro™ 2.6GHz processor (KabyLake 7^thgeneration) · PX5 Broadwell: Intel^®Core™ i5-5350U vPro™ 1.8GHz processor (Broadwell 5^thgeneration)
Memory	PX5 (KabyLake): · 8GB DDR4 SDRAM · Optional 16GB DDR4 SDRAM (by request only; MOQ may apply) PX5 (Broadwell): · 8GB DDR3L RAM
Storage	PX5 (KabyLake): · 128GB M.2 SSD (optional 256GB or 512GB) PX5 (Broadwell): · 128GB mSATA SSD (optional 256GB or 512GB)
Display	· 10.1” WUXGA (1920 x 1200), 1000 nits sunlight readable · 10-point capacitive touch supports glove touch, water rejection, palm rejection, 2mm hard tip stylus · Gorilla Glass · Digitizer with IP-54 pen (optional)
Control Button	· Programmable buttons x 3 · Barcode trigger x 1 · Power, volume, home buttons
Communication	· Wi-Fi 802.11 a/b/g/n/ac · Bluetooth V4.0 (Broadwell) / V4.2 (KabyLake) · Optional 4G LTE · GNSS (GPS/Glonass/BeiDou)
Camera	· 2MP front camera · 8MP rear camera with auto focus & LED flash
Data Collection	· FBI PIV & Mobile ID FAP20 single fingerprint scanner · FAP45 FBI-certified fingerprint scanner (single/dual, flat or rolled prints) · FAP45 fingerprint scanner + MSR · NFC · Smart card reader – CAC (Snap-on option) · 2D barcode reader (built-in option)
Sensor	Gyroscope, G-sensor, E-compass, light sensor
Power Adapter	AC 100V~240V, 50~60Hz Input; 19VDC@3.42A, 65W
Battery	PX5 (KabyLake): · Standard: 4500mAh, 10.8V, hot swappable battery, operates 12 hours* · Extended option: 9000mAh, 10.8V, hot swappable battery, operates 23 hours* PX5 (Broadwell): · Standard: 4500mAh, 10.8V, hot swappable battery, operates 6 hours* · Extended option: 9000mAh, 10.8V, hot swappable battery, operates 11 hours* *The listed battery life is based on Mobile Mark 2012® media mode testing.

I/O Interface

PX5 (KabyLake):

· USB 3.1 Type C x 1, USB 3.1 Type A x 1, RS-232 x 1 (optional USB 2.0 or Micro SD x 1 trade-off), Gigabit Ethernet (RJ-45) x 1

· Audio jack (headphone/mic combo) x 1, Speaker & mic

· Micro SIM x 1, Micro HDMI x 1

· RF pass-through connector (WLAN, GNSS, WWAN) x 2

· Docking connector (12-pin) x 1

PX5 (Broadwell):

· USB 3.0 Type A x 1, Gigabit Ethernet (RJ-45) x 1, RS-232 (optional for USB 2.0 type A)

· Audio jack (headphone/mic combo) x 1, Speaker & mic

· Micro SD x 1, Micro SIM x 1, Micro HDMI x 1

· RF pass-through connector (WLAN, GNSS, WWAN) x 2

· Docking connector (12-pin) x 1

Dimensions

and Weight

14” x 7.7” x 0.9” (35.56 x 19.5 x 2.3 cm)

3.0 lbs. (1.36 kg)

LED Indicator

· Power on/off

· Wi-Fi on/off

· Fn on/off

· Battery full /charging/low

Rugged Features

MIL-STD 810G & IP-65 Certified
Vibration, shock, and 5-feet drop

Environment

· Operating temperature: -4° F to 140° F (-20° C to 60°C)

· Storage temperature: -22° F to 158° F (-30° C to 70°C)

· Humidity: 95%, non-condensing

Security

· TPM 2.0

· Optional Janus USB Ignition Key, Phoenix SecureWipe

Accessories

INCLUDED:

· Stylus

· Hand strap

· Shoulder strap

· Handle

· Power adapter

OPTIONAL:

· Vehicle Dock

· Desktop Dock

· VESA Mount Bracket

· 2-bay Battery Charger

· Long Life Battery Pack

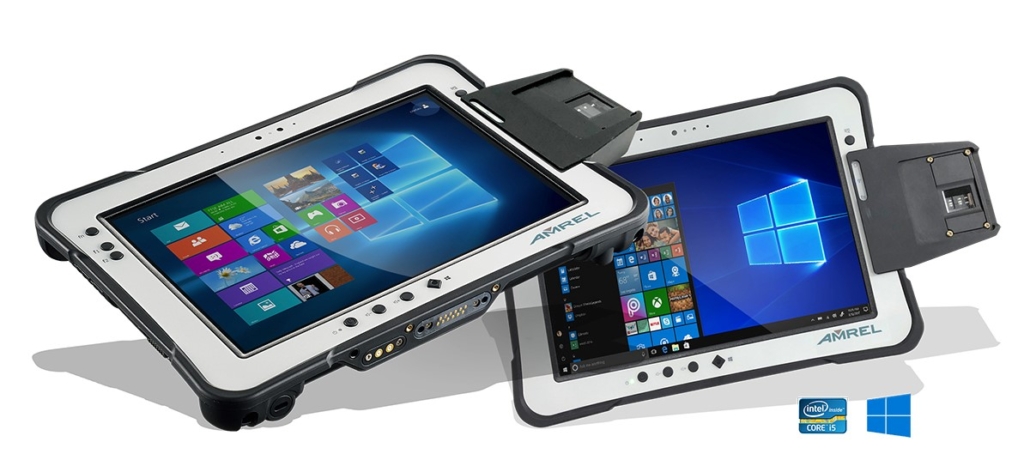

FBI PIV & Mobile ID FAP20 Certified Scanner

Ultra-Slim FAP20 Single Finger Authentication Scanner

Live Finger Detection	Yes
Sensor Type	Optical
Resolution	500 PPI
Gray Scale	256 level
Platen Size	0.65” (W) x 0.83 (L) \| 16.5 (W) x 21.0 (L) mm
Sensing Area	0.6” (W) x 0.8” (H) \| 15.24 (W) x 20.32 (H) mm
Image Size	300 (W) x 400 (H) pixels
Interface	USB2.0 High Speed
Operating Temperature	-10°C ~ +50°C
Operating Humidity	10~90% Relative Humidity
Dimensions	2.32” (W) x 1.26” (L) x 0.53” (H) 59 x 32 x 13.5 mm
Case Weight	0.31 lbs.
OS Support	Windows – XP, Vista, 7, 8, 8.1, 10 32/64-bit Linux – Ubuntu, Debian, Fedora, OpenSUSE, Cent OS 32/64-bit Android – 4.1 (Jelly Bean) and above
Image Format	RAW, BMP, WSQ, ISO 19794-4
Template Type	Suprema, ISO19794-2, ANSI-378
Certification	CE, FCC, KC, UL/CB, IEC 62471, WEEE, WHQL

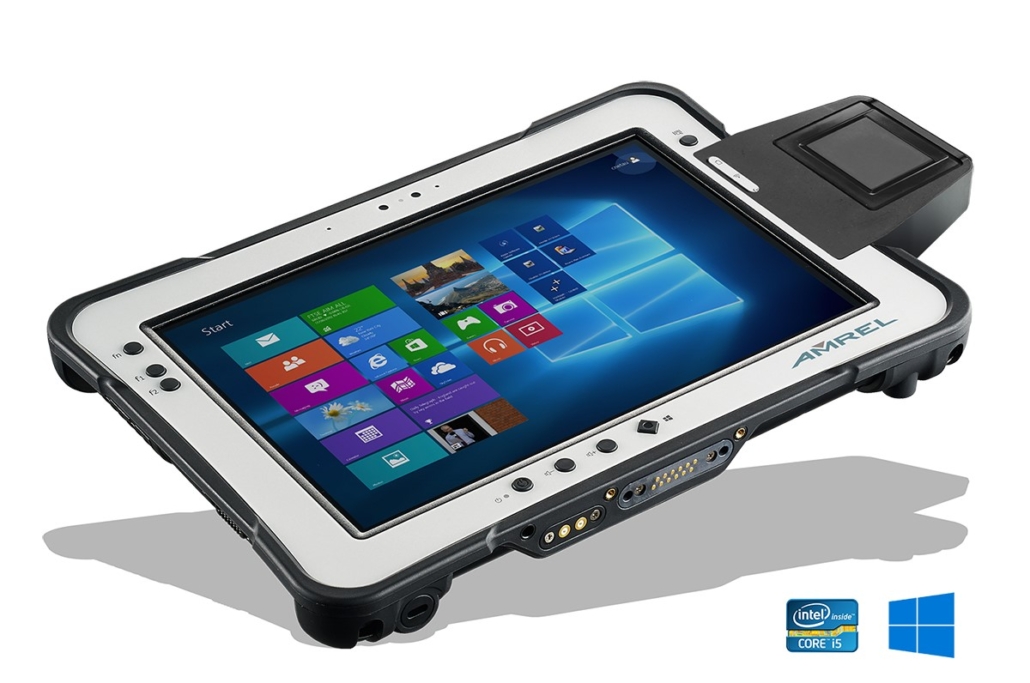

FBI PIV & Mobile ID FAP45 Certified Scanner

Mobile ID IQS FAP 45, PIV, GSA FIPS 201, FBI Appendix F

Resolution	500 PPI
Sensing Area	1.6” (W) x 1.5” (H)
Platen Area	3.38” x 2.12” \| 85.85 x 53.97 mm
Gray Scale	256 grayscale dynamic range
Image Size	800 (W) x 750 (H) pixels
Image Supported Formats	RAW, JPEG2000, BMP, PNG, WSQ
Scanner Physical Size	65.1 x 61.7 x 14.2 mm \| 2.56” x 2.43” x 0.56”
Product Weight	<55 Grams \| 1.94 oz.
Interface	USB 2.0 (Pogo Pin, Molex 51146-0600, Molex 51021-0600)
USB Certification Spec	USB-IF USB.ORG
FCC/CE Conformance	FCC Part 15 (per ANSI C62.4:2003) Class A, CSA ICES-003 Class A, CE Emissions: EN 55022:2006 Class A, CE Immunity EN 55024:1998/A1:2001/ A2:2003, IEC 61000-4-2
API Interface	Capture Single Finger Direct – Multi-device / Multi-thread support
USB Power Requirement	4.40V ~ 5.25V, Full Scanning TFT; Suspend <2mA
Power Consumption	<270mA during full scanning mode Standby 60mA
Air & Contact Discharge	In compliance with IEC 61000-4-2
Operating Temperature	-10°C ~ +55°C / 14°F ~ 131°F
Storage Temperature	-40°C ~ +80°C / -22°F ~ 140°F
Humidity	30~85% RH < 40°C / 104°F (Non-condensing)
Ingress Protection	IP-65 Sealed bezel to scanning surface
Surface Durability	MIL-C-675c 4.5010, MIL-STD-810F
Vibration Test	per MIL-STD-810F (Method 514.5), Category 24, Fig. 514.5C-17
Surface Resistance	Ammonia, IPA, Methanol, Soaps/detergents, Salt Water
Hazardous Material	RoHS Directive 2002/95/EC
OS Support	Windows 7, Windows 8.x Windows Server, Windows Mobile 6.5, Linux, Android 4.0 (or higher)
